Description

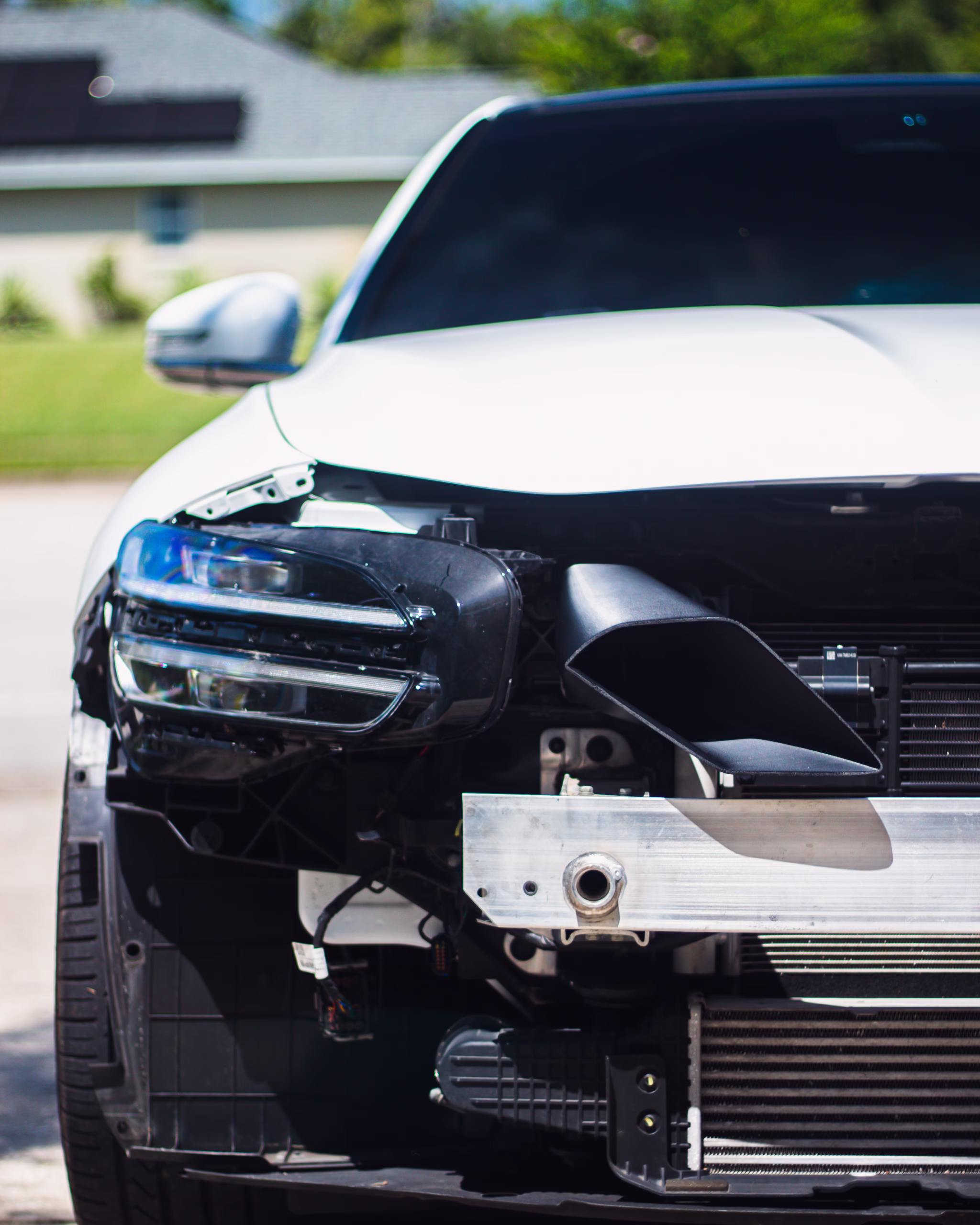

We designed these Genesis G70 intake stealth shrouds, also known as intake snorkels, to improve airflow to the airbox on your 2022 and newer Genesis G70. They help feed cooler outside air into the intake area and slow down how quickly temperatures heat soak in traffic. At the same time, they maintain an OEM+ appearance so the engine bay still looks clean and factory.
Available in single or dual shroud configurations. The 2.0T and 2.5T Genesis G70 models can run either a single shroud setup or a dual shroud setup depending on your airflow goals and preferred appearance.
Genesis G70 Intake Shroud Features
- Routes fresh air from the front of the car directly toward the intake area
- Designed to follow the shape of the 2022+ Genesis G70 front bumper for a clean OEM+ fit
- Tested on real Genesis G70 vehicles with intake air temperature data logging
- Built using durable materials designed for engine bay temperatures and daily driving
- Available with or without an Active Grille Shutter (AGS/AAF) Delete Module
- Optional RGB versions feature built-in WiFi browser control with no app required
Single vs Dual Shroud Setup
- Single Shroud Setup: Designed mainly for 2.0T and 2.5T Genesis G70 models that use one primary intake side.

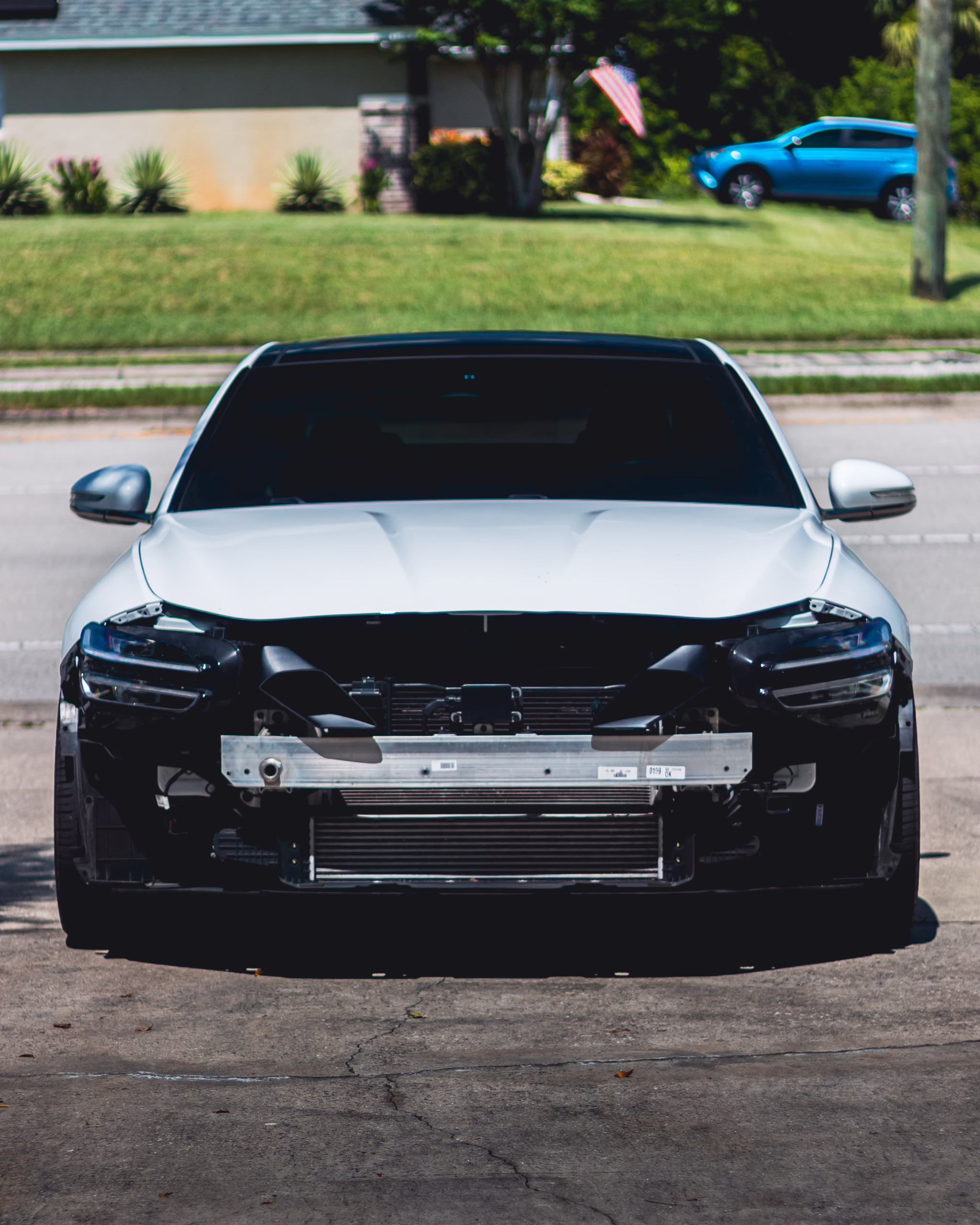

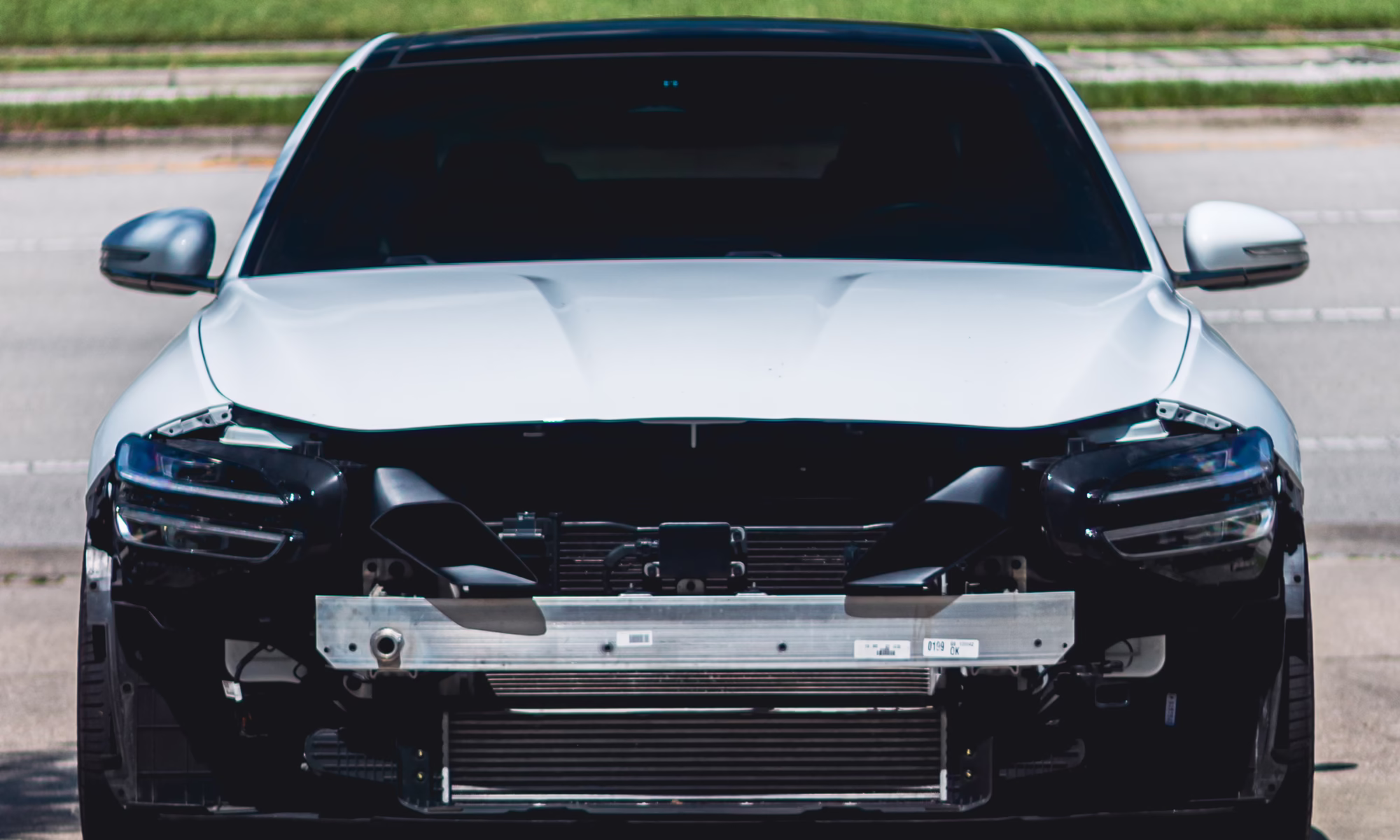

- Dual Shroud Setup: Uses both front intake openings for maximum airflow and a more symmetrical appearance. Compatible with 2.0T, 2.5T, and 3.3T models.
- AGS/AAF Delete Module: Intended for vehicles equipped with Active Grille Shutters behind the bumper. This module allows removal of the shutter assembly while helping prevent communication or check engine codes.
Fitment
- Vehicle: Genesis G70
- Years: 2022 and newer
- Engine Options: 2.0T, 2.5T, and 3.3T depending on selected configuration
What is Included
- Intake stealth shrouds or snorkels for the selected configuration
- Required mounting hardware or brackets when applicable
- Optional: AGS/AAF Delete Module when selected at checkout
Install Information
- Estimated install time: approximately 30 to 60 minutes
- Difficulty: Easy to Moderate
- A small trim cut on the inner bumper plastic is required for clearance
- No cutting of the frame, crash bar, or core support is required
- If using the AGS/AAF Delete option, the shutter assembly is removed and the simulator plugs into the factory harness
- Professional installation is recommended if you are not comfortable working around the front bumper and intake area
Usage Notes
These Genesis G70 intake stealth shrouds work with the factory airbox and many common aftermarket intake systems. They do not require tuning by themselves. However, higher power or aggressively tuned setups should always be monitored and data logged after airflow modifications.
If using the AGS/AAF Delete option, monitor coolant and oil temperatures during very hot conditions or extended aggressive driving.
Intake Shroud Questions
Do I have to cut or trim anything?
Yes. A small section of inner bumper plastic must be trimmed for clearance. No structural components of the vehicle are cut or modified.
Do I need the AGS/AAF Delete Module?
No. The intake shrouds work on their own. The AGS/AAF Delete Module is intended for owners who want to remove the factory active grille shutters for additional airflow and clearance.
What is the difference between single and dual shroud setups?
The single setup uses one intake side and is commonly used on 2.0T and 2.5T models. The dual setup uses both intake openings for increased airflow and a more symmetrical appearance.
Do I need a tune with these shrouds?
No. Most owners run these on stock or lightly modified Genesis G70 setups without requiring additional tuning.
Will these cause check engine lights?
The shrouds themselves do not trigger check engine lights when installed correctly. The optional AGS/AAF Delete Module helps prevent communication or shutter-related codes after removing the factory shutter assembly.
Still have questions? Check out our
PLUGNPLAYCUSTOMS FAQ page.
Manuchekhr Adashev –
The best 🫡🦾
이우승 (verified owner) –
Perfect fitment!
